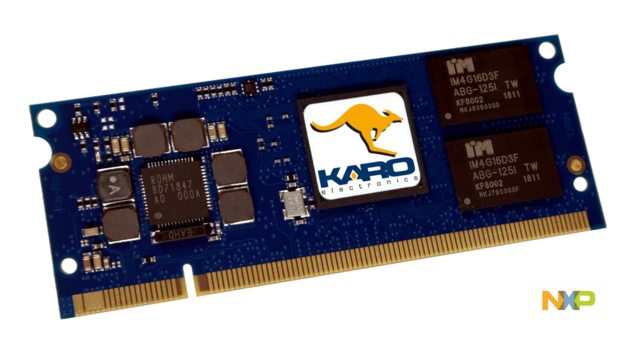

The TX8M is a member of the TX module series, specially designed for i.MX multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity TX modules includes an i.MX processor, power supply and memory.
TX8M Linux Development Kit
The TX8M development kit contains a 7” TFT display for development and prototyping of industrial display applications.
Linux is pre-installed and ready for application development. Other features include:
- Single 12VDC power supply
- Mini-PCIe socket
- RJ45 Ethernet connector
- 3.5mm audio jack
- 120-pin header expansion ports
- MIPI-CSI camera interface on DF13
- Micro SD-Card socket
An overview of the current standard variants.
Customized versions on request.
|Processor||NXP i.MX 8M Mini Quad||NXP i.MX 8M Mini Quad||NXP i.MX8M Nano Dual|
|SDRAM||1 GiB||2 GiB||512 MiB|
|Flash||4 GB||4 GB||4GB|
|Temperature||-25 °C to 85 °C||-25 °C to 85 °C||-25 °C to 85 °C|
